9XA Circuit - This is a replication of Stan's 9XA Circuit. This circuit is based on the 8XA Circuit, but it has the addition of a Gated Pulse Generator along with the Resonant Pulse Generator and the pulsing range for both generators are from < 1 Hz - 10k Hz @ 50% fixed duty cycle. Please allow 3-4 weeks before delivery.

$65.00 + S&H

(USA Orders)


(International Orders)


8XA Circuit Bare PCB - Professionally manufactured 8XA Circuit bare circuit boards. Each board will measure 4.6"x2.3" and will be double sided with the silkscreen layout on top side.   Please allow 3-4 weeks before delivery.

(Components Placement Diagram)

*These are just the boards, no components included.

$35.00 + S&H



8XA Circuit Assembled - This is the same as the above circuit except this circuit is assembled. The circuit will look like the image below. Please allow 3-4 weeks before delivery.

(Connections Diagram)

$50.00 + S&H

(USA Orders)

(International Orders)



Complete VIC Circuit - Comes with all the components fully assembled. The VIC Circuit includes the following circuits all on one PCB: "Variable Pulse Frequency Generator", "Gated Pulse Frequency Generator", "Phase Lock Circuit", "Resonant Scanning Circuit", Resonant Feedback", and "Cell Driver Circuit". All you would need is a properly constructed Cell, Transformer, and 12v power source. Please allow 3-4 weeks before delivery.

(Connections Diagram)

*International Shipping Rates may apply*

$250.00 + S&H

(USA Orders)

(International Orders)







VIC Circuit Kit - This kit includes: VIC PCB (as pictured above), all resistors, capacitors, transistors, diodes, IC's, voltage regulators, switches, and potentiometers. Please allow 3-4 weeks before delivery.

(Components Placement Diagram)

$175.00 + S&H

(USA Orders)

(International Orders)

VIC Circuit Bare PCB - Professionally manufactured VIC Circuit bare circuit boards. Each board is double sided with the silkscreen layout on top side.   Please allow 3-4 weeks before delivery.

$75.00 + S&H

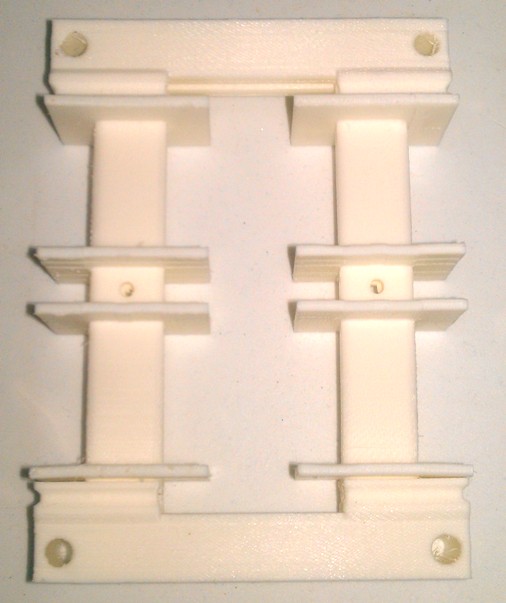

VIC Transformer Bobbin - This is an exact duplication of Stan's VIC Multi-Coil Transformer. These bobbins are made of PLA plastic. Ferrite Cores NOT included, 4 piece bobbin ONLY. Made upon ordering, color may vary. Please allow 3-4 weeks before delivery.

$40.00 + S&H

(USA Orders)

(International Orders)



All circuits are for experimental purposes only! No refunds, all sales are final.
